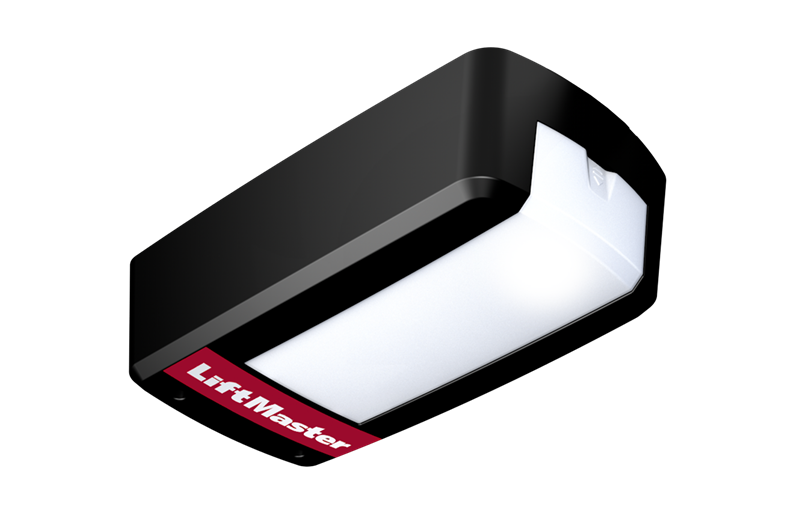

LiftMaster LM55EVF garagedeuropener
Productinformatie "LiftMaster LM55EVF garagedeuropener"
Specificaties
| Voltage IN | 230-240 V, 50/60 Hz |
|---|---|
| Motor voltage | 24V DC |
| Max pull force | 600 N |
| Stand-by power | 0,8 W |
| Drive type | Belt |
| Gate height | Adjustable up to 2,25 m |
| Speed | 100 mm per second |
| Lighting | LED turns on with activation, turns off 2.5 minutes after operation |
| Obstacle detection | Automatic |
| Force setting | Automatic |
| Over voltage protection | Transformer overload protection |
| Operating temperature | -20°C bis +40°C |
| Limit Switch | Electronic |
|---|---|
| Max door area | — |
| Max door width | 3,5 m |
| Max door weight | 90 kg |
| Headroom required | min. 35 mm |
| Weight | 10 Kg |
| Memory registers | 40 |
| Radio | 433 MHz + 868 MHz |
| Further features | Soft-Start and Soft-Stop |
| MyQ smartphone combatible | — |
| Safety class | TÜV-tested to meet EN12453. For doors up to 90 kg |
| Motor warranty | 3 Years* |
Eigenschappen "LiftMaster LM55EVF garagedeuropener"
| Verbindingsmogelijkheden: | Geen |
|---|
